CHRYSLeR CRUIZE CoNTRoL DiaPHRaGM

If you have a very old car, there's a good chance the reason the cruize isn't working is because
the rubber diaphram in the vacuum servo is rotted away. If it's a Chrysler from the late 60's
to the early 80's, I have good news for you! They are disassemblable and I have diaphrams!

The originals are very thin unreinforced rubber. Its amazing they last more than a few years, but
they are certainly not lasting more than 15, even if the car has been in storage from day 1.

The new ones are 2 layers of double knit polyester fabric reinforcing silicon rubber.
I needed to make fixtures just to make 1 for myself, so I can make more any time, but not in
hi quantities. If you can spare 30 bucks and 30 minutes, email or call me at 847 845 1767.

Here are some pix from the project. Click on them to see full size.

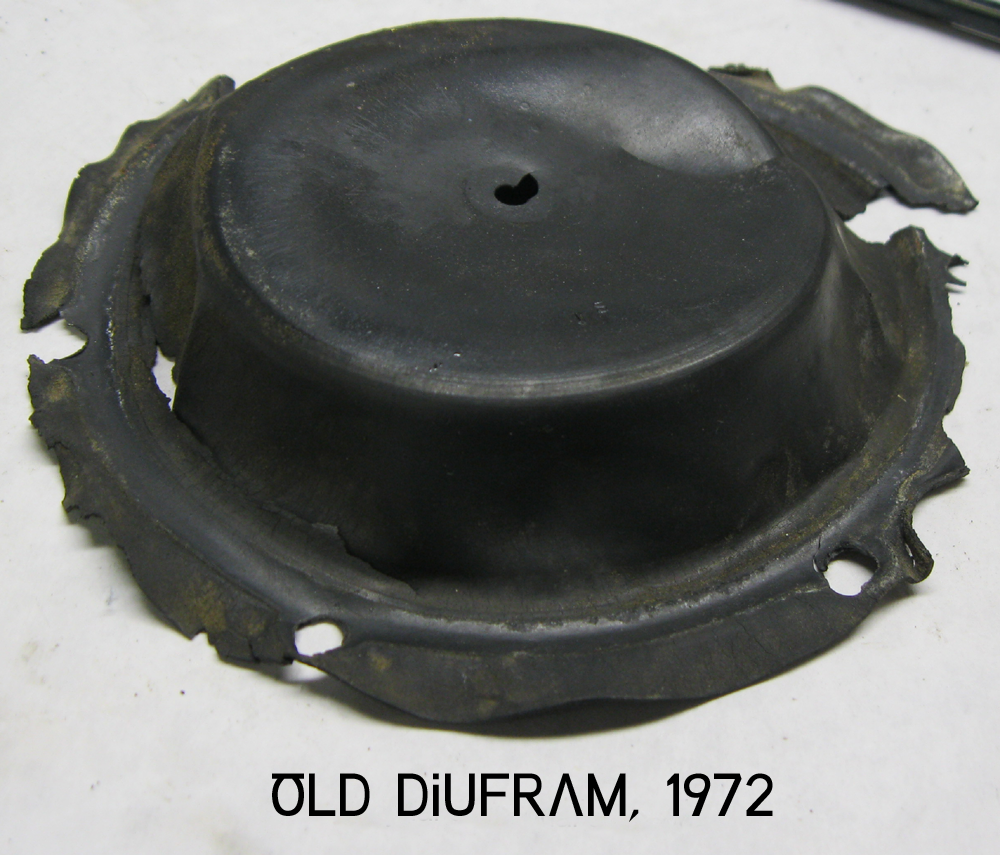

OLD DiUFRaM

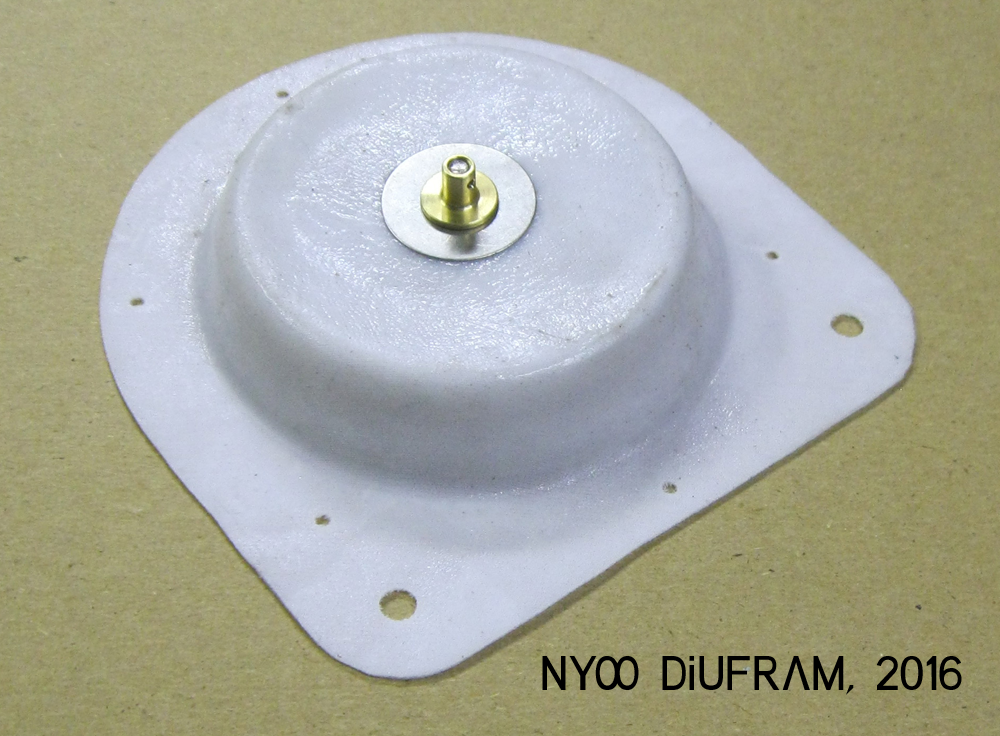

NYQ DiUFRaM

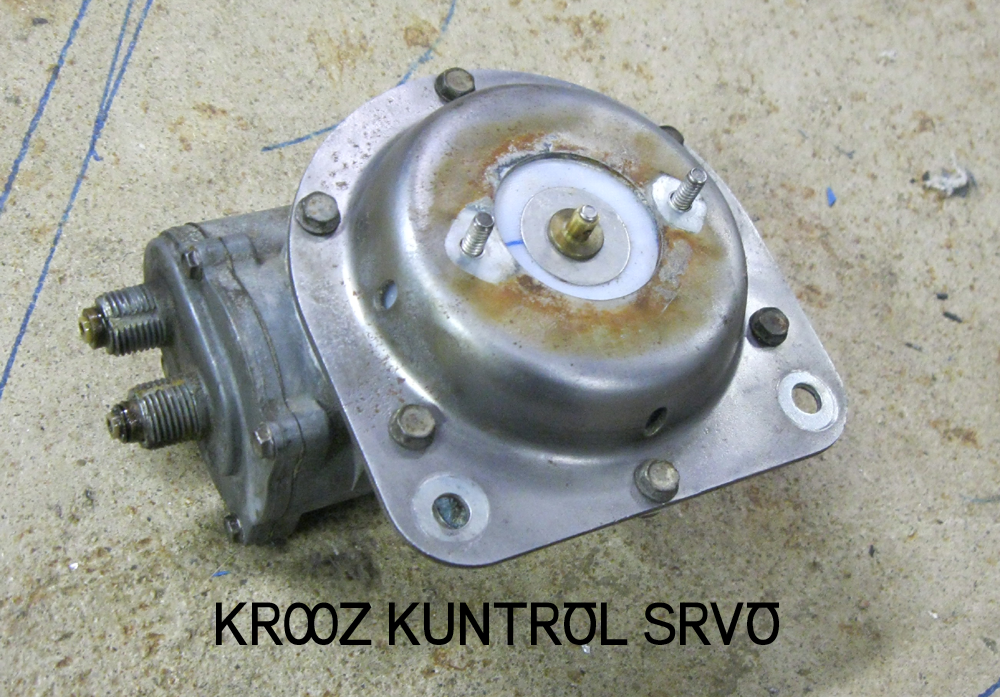

KRiSLR KRQZ KUNTROL SRVO
INSiD XU KRQZ SRVO
FORM FIKSCYR

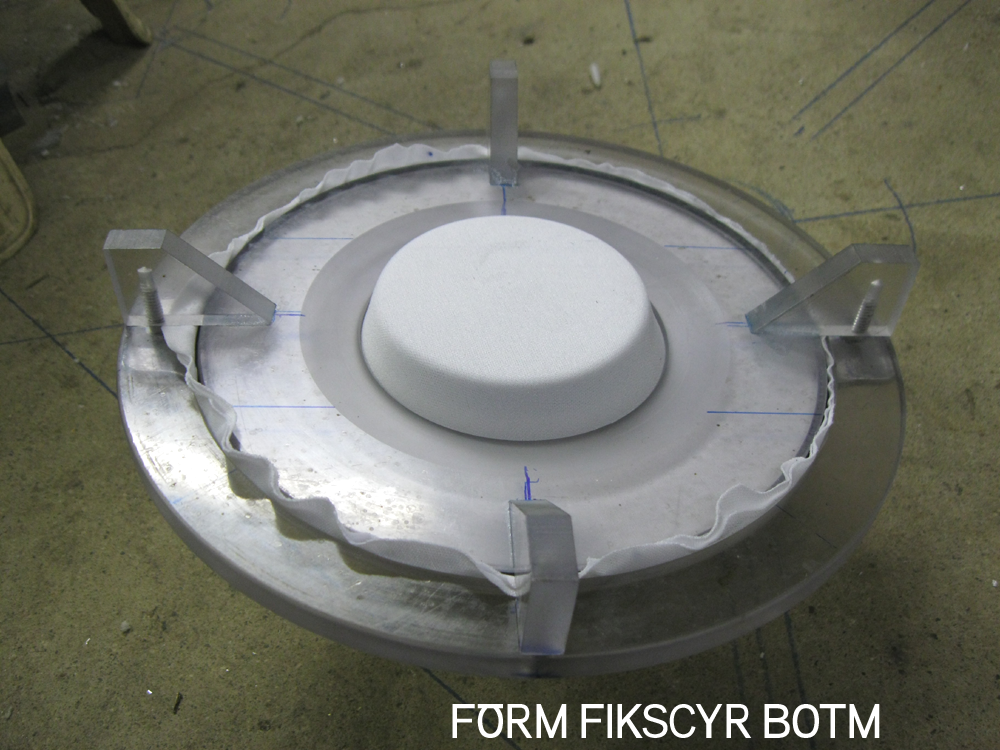

FORM FIKSCYR BoTM

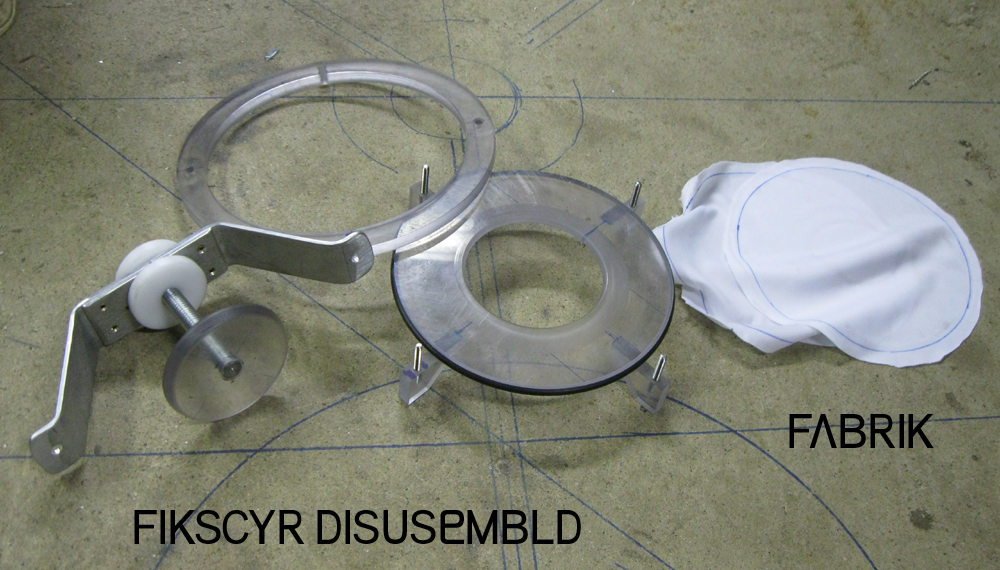

FIKSCYR & FABRIK

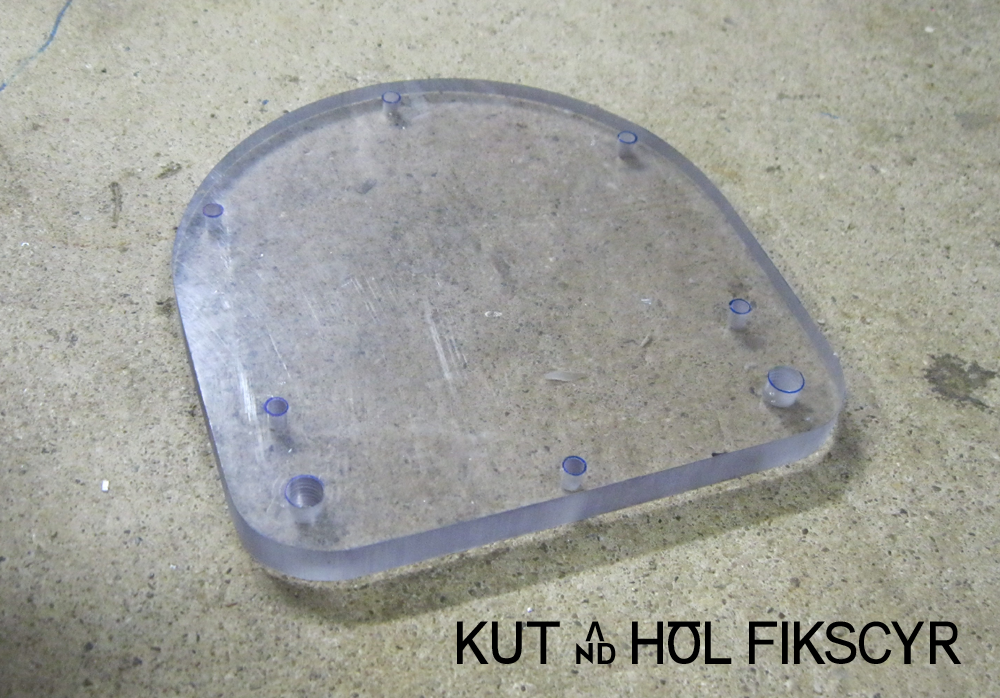

KUT & HOL FIKSCYR

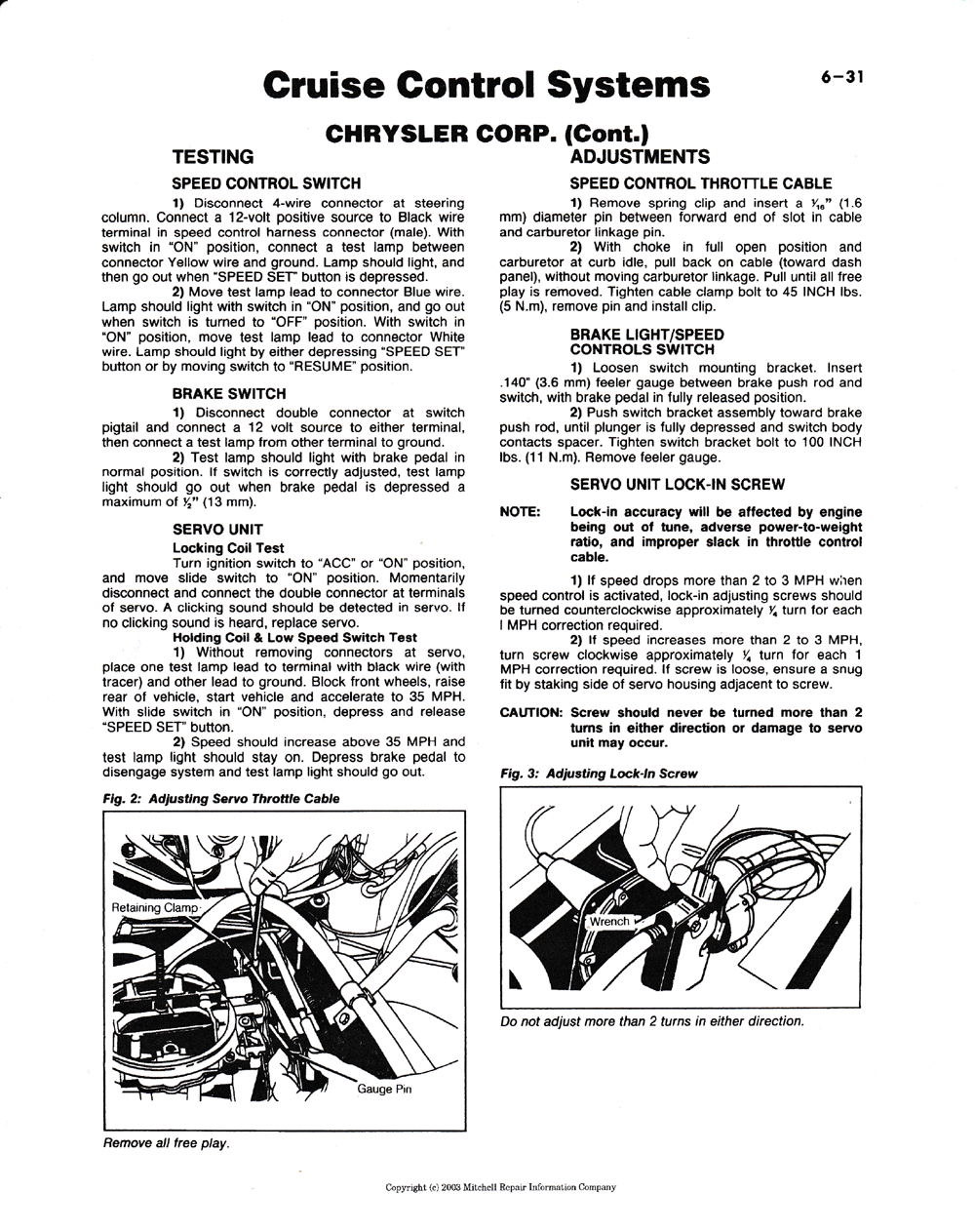

KRQZ KUNTROL SRVIS INSTRUKsNZ

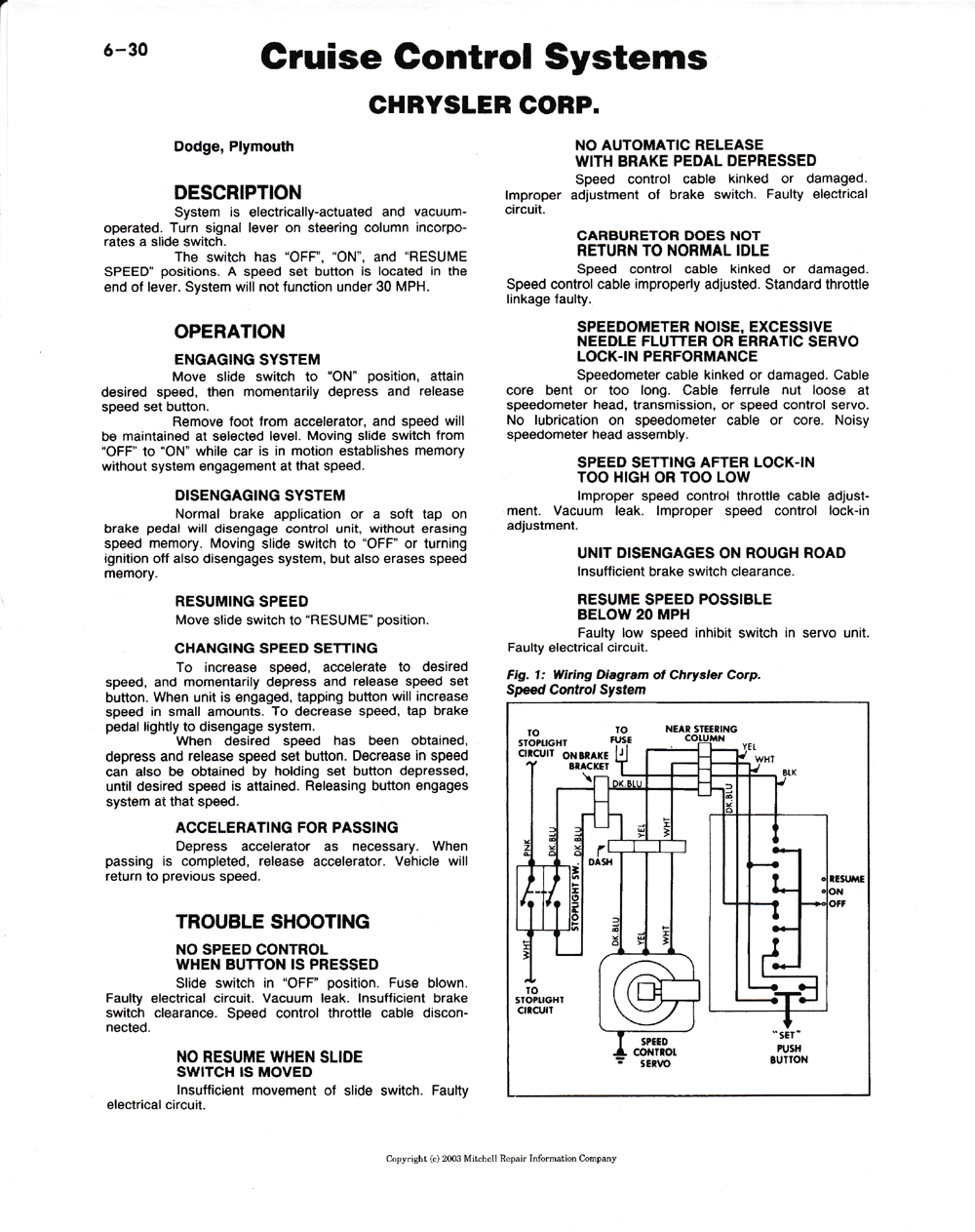

KRQZ UNTROL SRVIS INSTRUKsNZ
